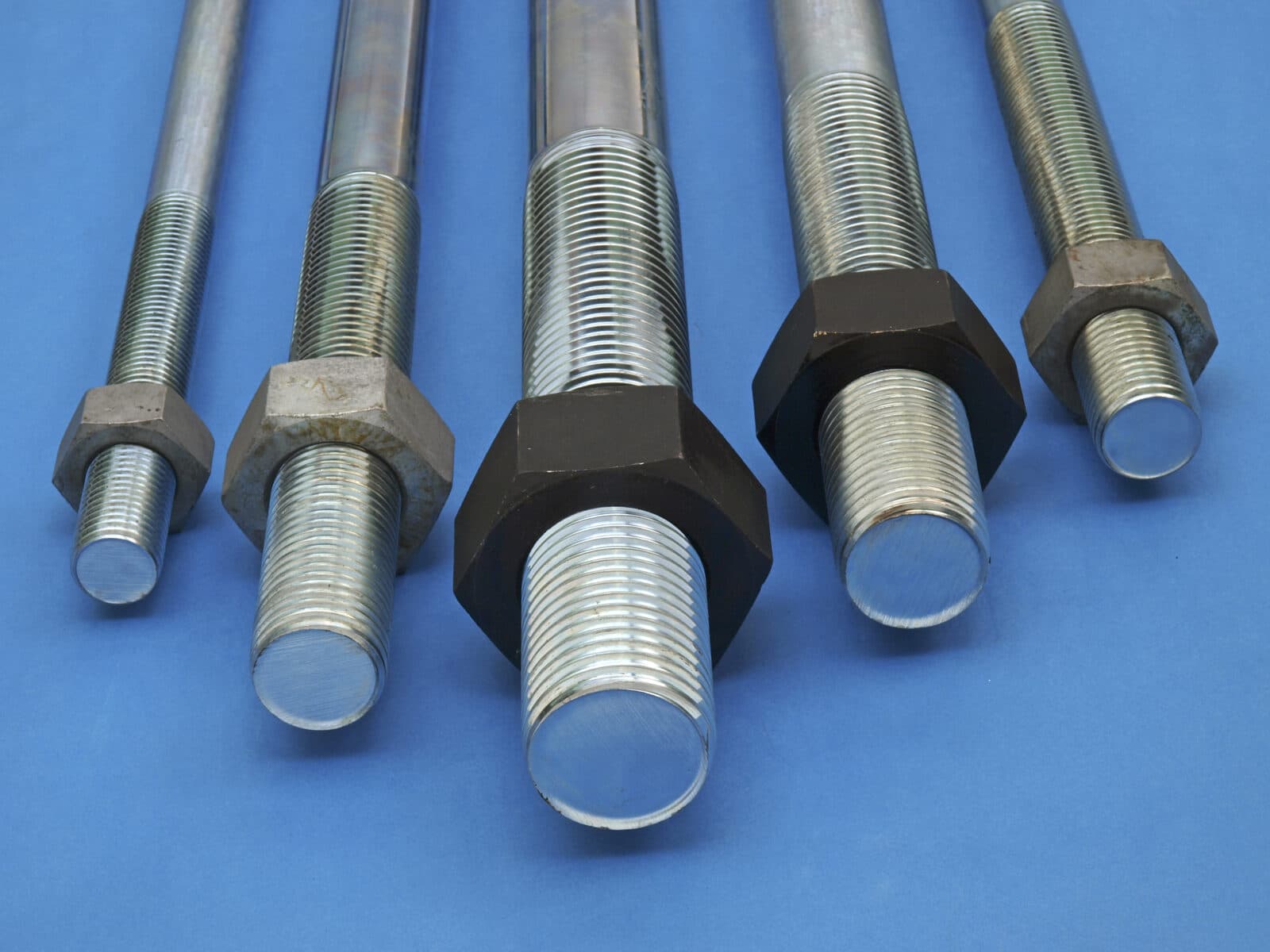

High strength threaded bar
High strength threaded bar equivalent to Grade 10.9 and conforming to BS EN ISO 898-1, with good V-notch toughness, supplied end threaded or fully threaded.
M30 to M56 standard, 6 m lengths
Daver Steels offer high strength threaded bar equivalent to Grade 10.9 and conforming to the requirements of BS EN ISO 898-1. Daver Steels High Tensile (DSHT) bar has a high yield stress (typically 900N/mm2) but unlike some other HT bars also has a good V-notch toughness (min 45J at 20oC and 27J at minus 20oC).
Standard diameters of threaded bar are available from M30 to M56 in lengths of 6m. Larger diameters and lengths are available at special request but will be subject to increased lead time.
Threads are standard metric coarse pitch to BS 3643 class 8g and allow a variety of standard and special fittings to be used. Left hand threads can also be supplied, by request.
Stainless or exotic equivalents can be supplied on request, along with left hand threads to suit your requirements.
Applications
High strength bar is used widely throughout the Civil & Structural Engineering industry. Typical uses include:
• Holding down bolts • Temporary works
• Tie bars • Masonry tensioning
Daver Steels are also able to assist the Oil & Gas industry with their requirements for Tie Down Bolts in super duplex or exotic materials with high nickel and chrome content.
