CE Approved

Surface Finishes & Corrosion Protection

Daver Steels compression strut system can be supplied with a surface finish to suit the installed application.

Carbon Steel:-

  • Self colour
  • Shot blast and primer coated for subsequent final painting by the client
  • Shot blast, primer and final coat ready for assembly into the structure.
  • Powder coated (there are process limitations to the maximum piece size, please enquire)
  • Thermal zinc spray to ISO 22063


Stainless Steel:-

  • Satin polished with minimum grade 320 grit.
  • Mirror polished by hand to a bright finish.
  • Pin assemblies can be supplied with an isolation arrangement to the pin barrel and end caps.

Dissimilar Metals Isolation:-

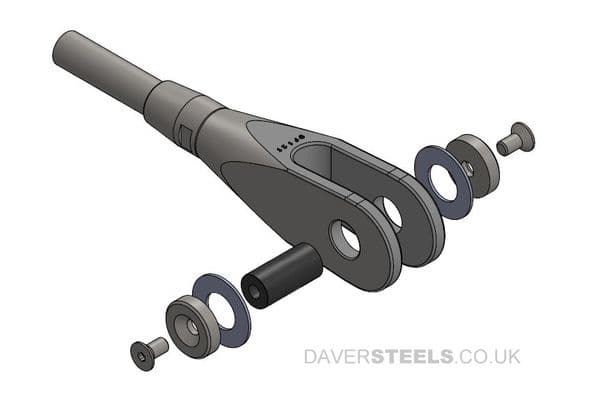

Fork End Assembly with PTFE & Isolation

Exploded view of fork end assembly showing neoprene washers and PTFE coated pin barrel to prevent dissimilar metal corrosion
